Κάμερες EMCCD για τις Φυσικές Επιστήμες & την Ανίχνευση Χαμηλού Φωτισμού

Οι EMCCD κάμερες της Andor προσφέρουν απαράμιλλη ευαισθησία για χαμηλό φωτισμό, με δυνατότητα ανίχνευσης μοναδικών φωτονίων και υψηλής χρονικής ακρίβειας. Είναι ιδανικές για τις φυσικές επιστήμες, σε εφαρμογές όπως πλάσμα, κβαντική οπτική και ανίχνευση μορίων σε πραγματικό χρόνο.

Κωδικός Προϊόντος EMCCD Category Επιστημονικές Κάμερες Brand: OXFORD/ANDOR

Προσθήκη στο Wishlist

Περιγραφή

EMCCD Cameras for Physical Science & Low-Light Detection

Exceptional performance for single-photon sensitivity and ultrafast imaging in physical science research.

With single photon sensitivity, EMCCD cameras from Andor represent a dedicated, high-end scientific platform that remains accessible to researchers. These systems are designed to maximize performance across all critical specifications and parameters, fully leveraging the capabilities of ultra-sensitive EMCCD technology for the most demanding applications.

Andor’s iXon and OCAM EMCCD cameras deliver ultra-sensitive, high-performance imaging solutions for both life science and physical science applications. These cameras are engineered to extract the full potential of EMCCD sensor technology, optimizing every critical performance parameter.

Key features include:

➡️ Back-illuminated sensors with >95% Quantum Efficiency (QE)
➡️ Thermoelectric (TE) cooling down to -100 °C
➡️ SRRF-Stream+ for real-time super resolution imaging
➡️ Fast frame rates from 26 up to 2067 fps
➡️ UltraVac™ vacuum technology for long-term sensor protection

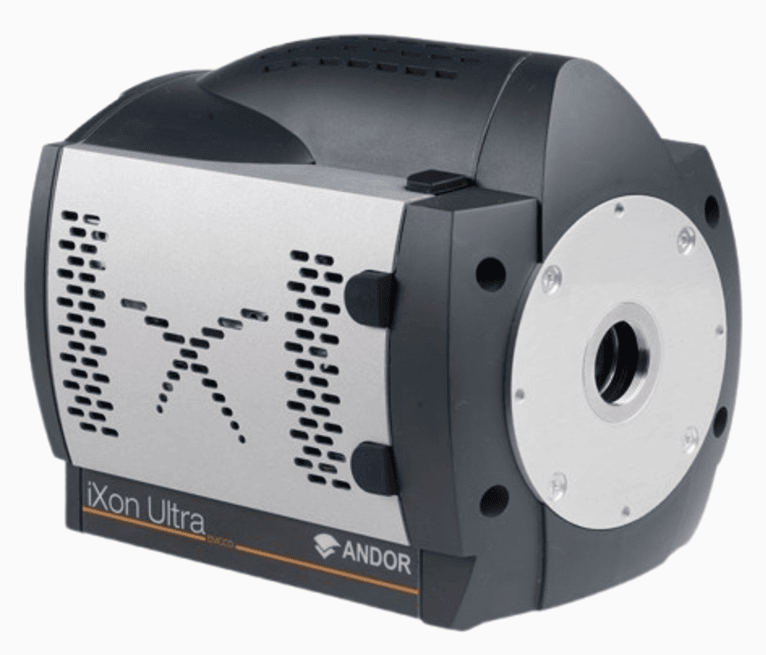

iXon Ultra

Ultra-sensitivity across broad wavelength range

The iXon Ultra platform combines advanced performance like deep vacuum cooling, ultra-low noise, and fast frame rates with user-friendly features such as one-click optimization via OptAcquire™.

It offers quantitative calibration in electrons or photons, automated EM gain recalibration, and anti-ageing protection. With plug and play USB connectivity, a low-noise CCD mode, and Camera Link output for minimal latency, it’s ideal for rapid closed-loop experiments. The iXon brand is known for exceptional quality, reliability, and minimal field failures.

➡️ 888 model (1024 x 1024) or 897 model (512 x 512)
➡️ Broad BSI QE response
➡️ Up to 56 fps (full frame)
➡️ TE Cooling down to -100°C

🆕 iXon Ultra Blue

Optimized for Blue/Ultra-Violet

The iXon Ultra Blue back-illuminated EMCCD camera is the world’s most ultra-sensitive detector for Blue and UV photons.

Combining single photon sensitivity with a significantly boosted QE across the 200 to 450 nm range, the iXon Ultra Blue is ideal for the most demanding light-starved and rapid imaging applications, such as trapped ion quantum imaging.

➡️ 888 model (1018 x 1018) or 897 model (506 x 506)
➡️ BSI QE from 200-450 nm
➡️ Up to 56 fps (full frame)
➡️ TE Cooling down to -100°C

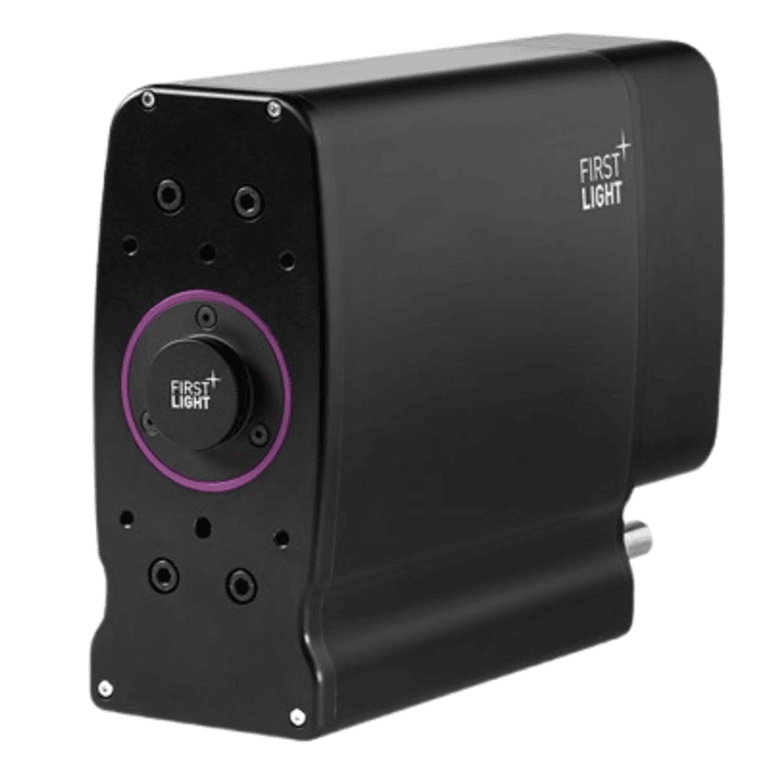

OCAM2K

High Speed, Ultra-sensitive: Ideal for Adaptive Optics

OCAM²K is a high-speed, low-noise EMCCD camera capable of running at up to 2067 fps (or 3700 fps with binning) with sub-electron readout noise. It integrates the Teledyne E2V CCD220 sensor, a Peltier-cooled 240 x 240 pixel, frame-transfer, 8-output, back-illuminated sensor.

The camera features metal buttressed clock lines that enable ultra-fast frame transfer in just 12 microseconds, minimizing smearing. With an extremely low latency of 43 μs between exposure and pixel availability, OCAM²K is designed for visible imaging in astronomy, offering up to 95% quantum efficiency across the 400 to 900 nm range. It can be equipped with a 20 x 20 sub-aperture microlens array for wavefront sensing applications, customizable upon request.

➡️ Up to 2067 FPS full frame
➡️ 240 x 240 format, 24 µm pixel
➡️ BSI deep depletion NIR-enhanced QE
➡️ Ultra low latency 43 µs

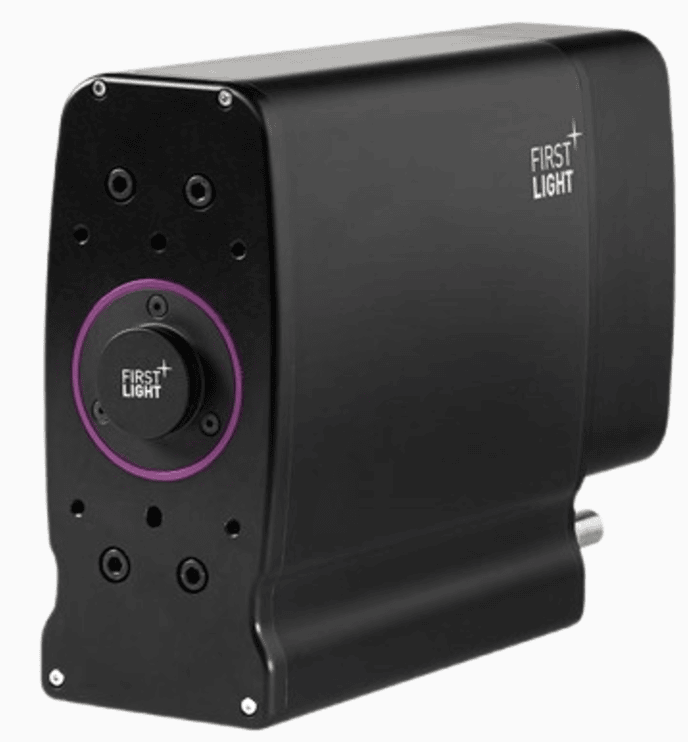

OCAM2S

High Speed, Ultra-sensitive, Fast Electronic Shutter

The OCAM²S is a high-speed, ultra-low noise EMCCD camera offering up to 2067 fps (or 3700 fps with binning). Unlike the OCAM²K, it features an integrated electronic shutter for precise control of integration pulses shorter than 1 µs with timing accuracy better than 50 ns.

Built on the Teledyne E2V CCD219 sensor (240 x 240 pixels, split frame transfer), it uses high-speed clock lines for rapid frame transfer in 12 microseconds and low latency of 43 µs. With up to 95% quantum efficiency across 400–900 nm, OCAM²S is ideal for astronomy and wavefront sensing, supporting a customizable 20 x 20 microlens array. Its shutter and pulse control set it apart from the shutter-free OCAM²K, enabling precise timing and reduced smearing.
