Dispersers Homogenizer Crushing for Laboratory

IKA ULTRA-TURRAX dispersers and homogenizers are designed for high-efficiency particle size reduction, homogenization, emulsifying, and suspending across laboratory and pilot-scale applications. With precise speed control, powerful motors, and a wide range of dispersing tools, these systems ensure consistent, reproducible, and reliable results, even for demanding samples and challenging viscosities.

Key Features & Technologies

🟦 High-speed performance up to 25,000 rpm for efficient homogenization and fine particle reduction
🟦 Digital speed display with soft start for controlled and safe operation
🟦 Wide range of dispersing tools for flexibility across applications and volumes
🟦 Ergonomic and robust design for stability, durability, and long service life
🟦 Capability for vacuum operation, PCR preparation, and effluent sample processing
🟦 Focus on functionality, operator safety, and long-term reliability

Product Categories

🟦 Complete Solutions
🟦 Compact Lab Scale Dispersers
🟦 Lab Scale Dispersers
🟦 Pilot Scale Dispersers
🟦 Inline Dispersers

These dispersing systems provide scalable performance, from small laboratory volumes to continuous processing environments, enabling laboratories and production facilities to achieve homogeneous mixtures, stable emulsions, and repeatable outcomes with maximum efficiency.

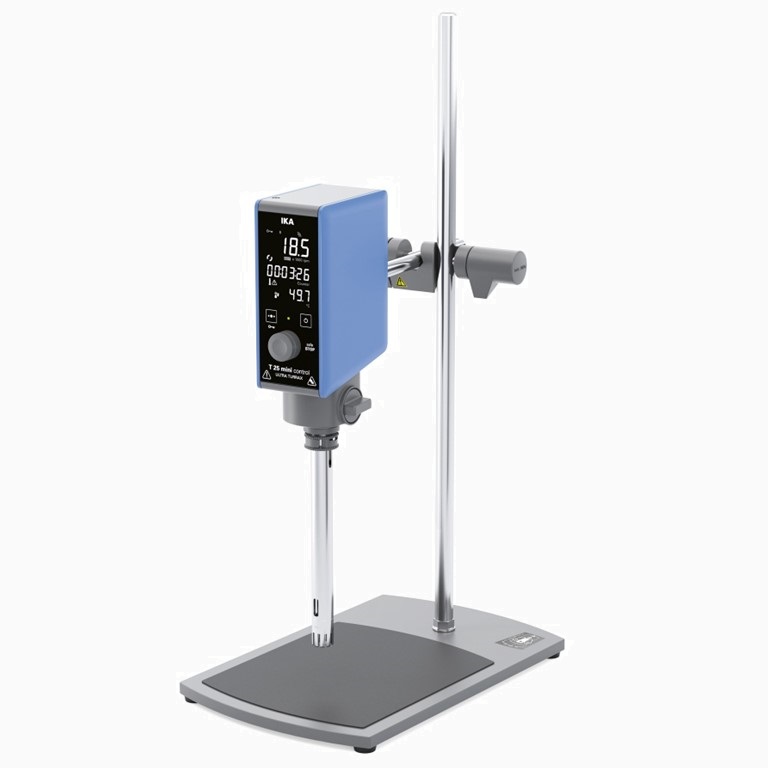

Complete Solutions

Complete Solutions from IKA provide fully configured dispersing systems that combine the drive unit, rotor–stator tools, and accessories into one integrated and compact package for immediate use. Designed around the high-shear rotor–stator principle, these systems deliver high-speed operation (up to 25,000 rpm), precise electronic speed control with digital display, and soft start functionality for controlled processing of sensitive samples.

Interchangeable dispersing tools support different viscosities, particle sizes, and working volumes, enabling powerful homogenization, emulsification, and suspension with reliable torque transmission and minimal sample heating. Optimized component matching within each IKA configuration ensures reproducible results, efficient particle size reduction, and consistent performance across demanding laboratory and pilot applications.

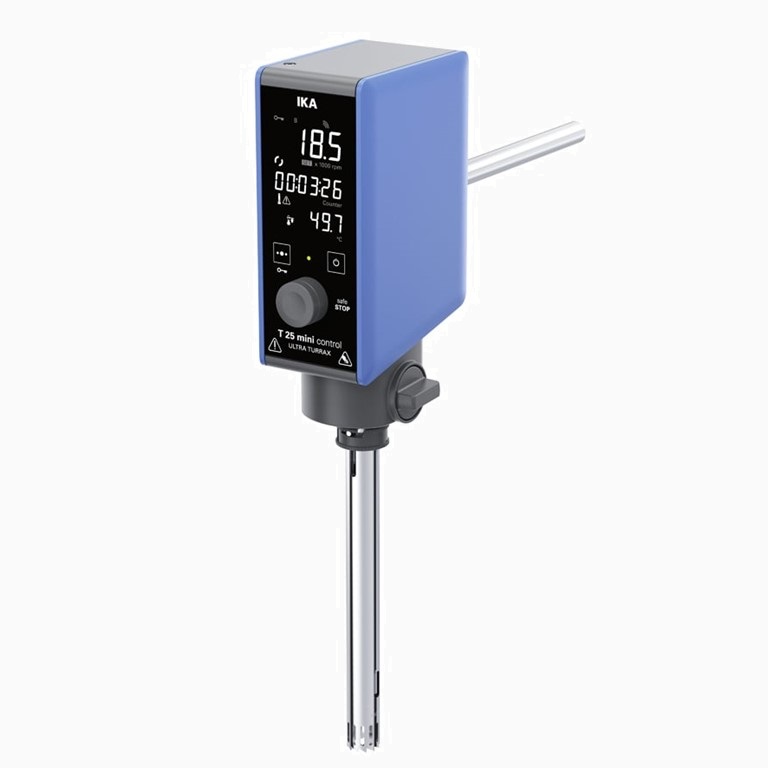

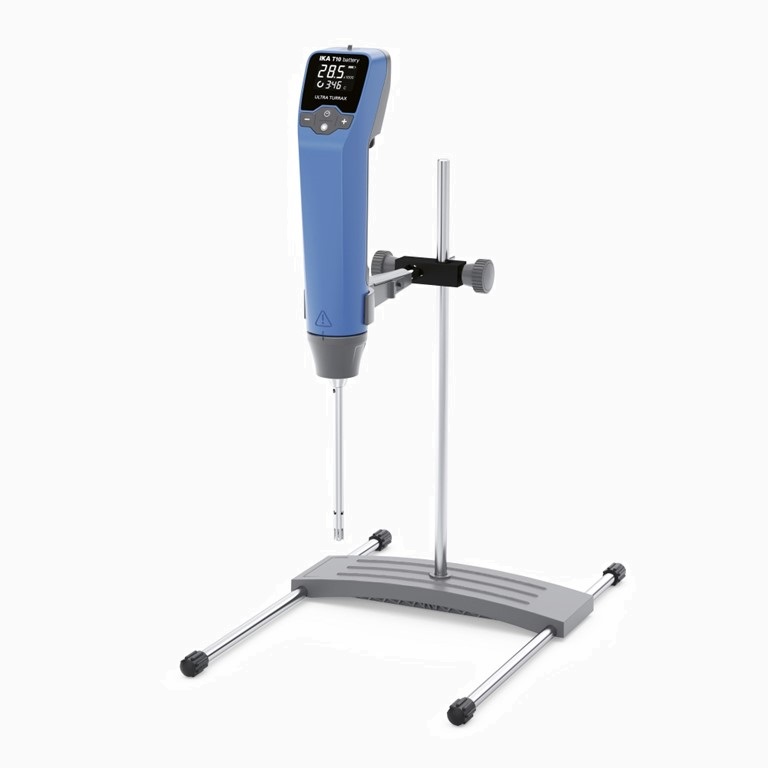

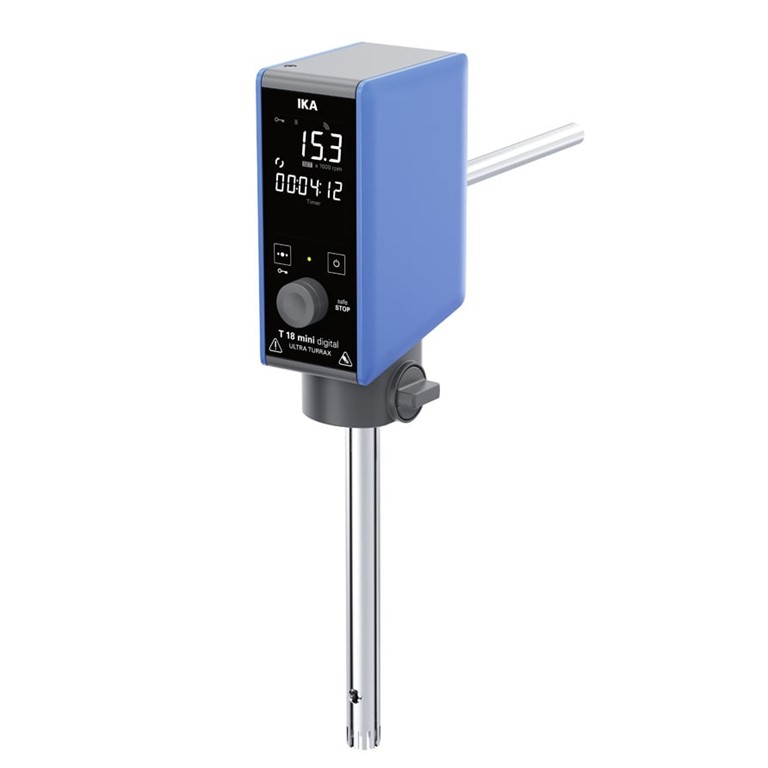

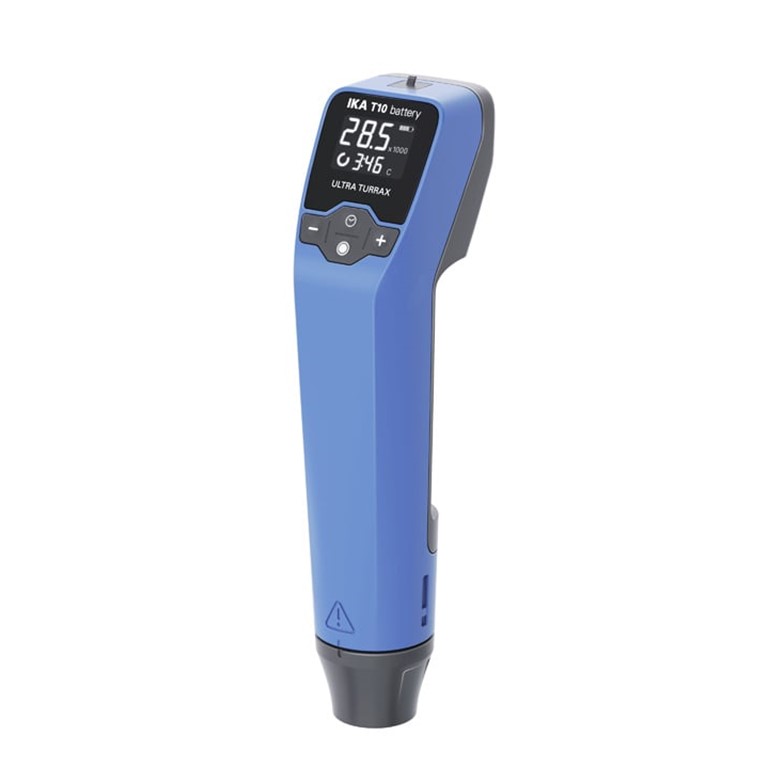

Compact Lab Scale Dispersers

Compact Lab Scale Dispersers from IKA are compact, high-performance homogenization devices designed for small-volume laboratory applications requiring precise particle reduction, efficient emulsification, and reliable dispersion results. These systems typically feature high-speed motors reaching up to 25,000 rpm, digital speed control, and soft start functionality for controlled operation and sample protection.

The modular dispersing tool design enables quick tool exchange and application flexibility, while the ergonomic construction ensures stable handling, low vibration, and consistent performance during demanding workflows. Optimized for research, quality control, and routine laboratory processes, compact dispersers deliver reproducible results, operational safety, and long-term durability within a space-saving footprint.

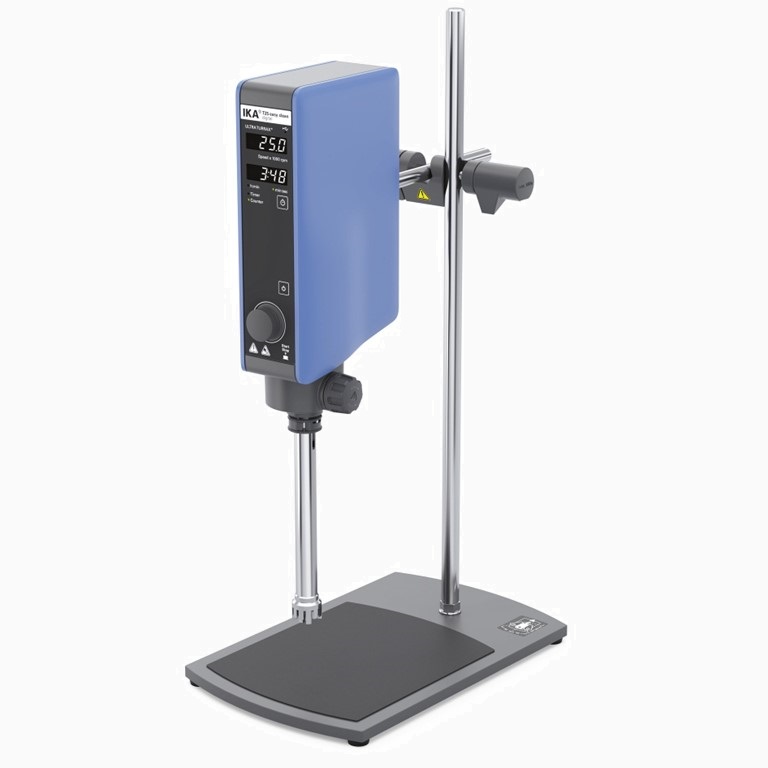

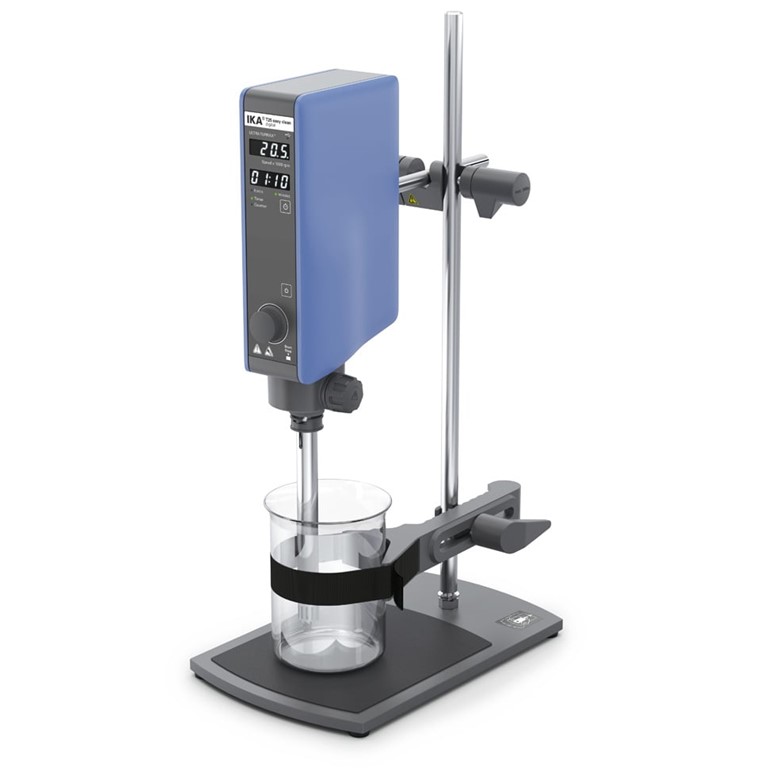

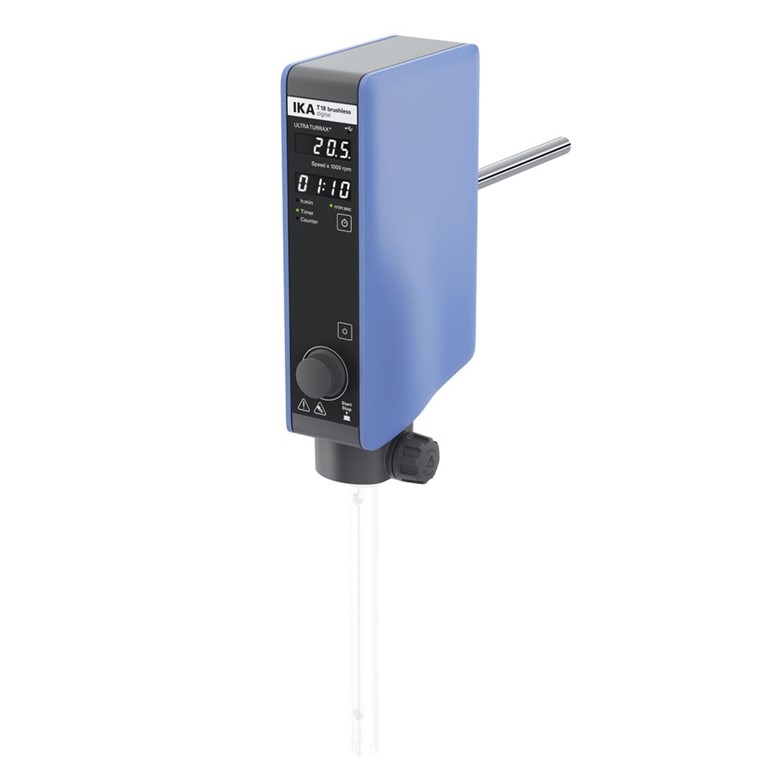

Lab Scale Dispersers

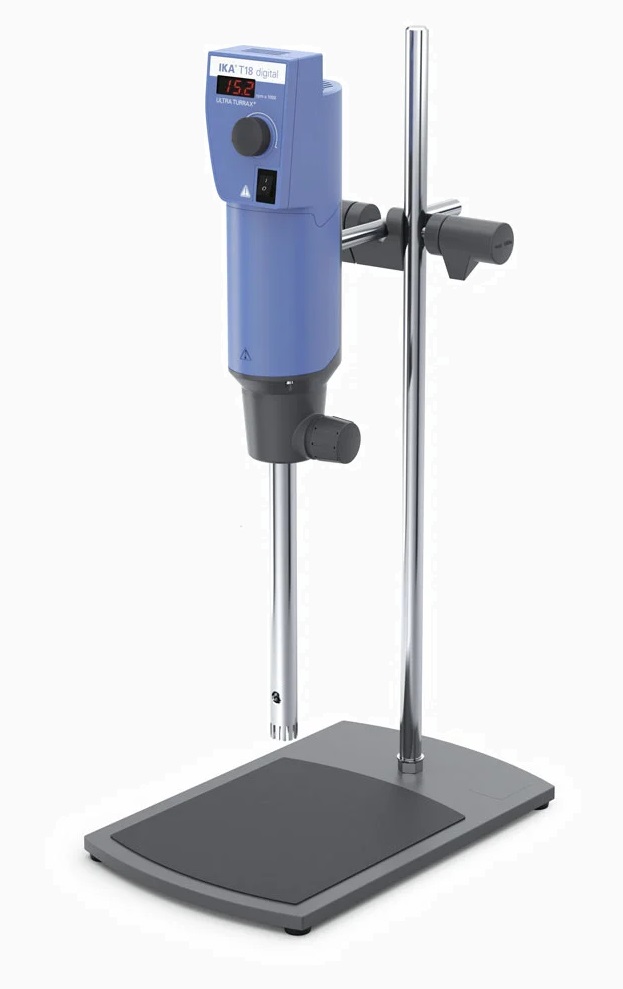

Lab scale dispersers from IKA provide high‑performance homogenization and dispersion for medium‑volume laboratory workflows, enabling efficient processing from millilitre up to multi‑litre samples. These systems combine stepless speed control and digital displays with robust construction to deliver precise mixing and particle size reduction across a variety of applications. Models such as the T 18 brushless digital ULTRA‑TURRAX® and T 25 easy clean digital ULTRA‑TURRAX® operate across a wide speed range up to 25,000 rpm, supporting working volumes from 1 ml to ~2 l and a broad selection of dispersing tools to match sample viscosity and vessel type.

The brushless motor designs ensure quieter operation, improved motor life, and hygienic use, while digital displays and optional interfaces allow for remote control and documentation. These dispersers are suitable for homogenizing, emulsifying, suspending, and particle reduction in batch operations under standard, vacuum, or pressure conditions, delivering reproducible results with optimized performance.

Pilot Scale Dispersers

Pilot Scale Dispersers from IKA are engineered for high‑performance homogenization and dispersion in larger volume applications, bridging the gap between laboratory research and production environments. The T 65 digital ULTRA‑TURRAX® disperser is a robust instrument designed for typical pilot plant stations, capable of processing volumes from 2 – 50 L (H₂O) with a wide speed range of 1,000 – 9,500 rpm. Its digital speed display and electronic speed control ensure reproducible mixing even when viscosities change, while the ability to achieve high circumferential speeds with small rotor diameters expands versatility across different formulations and product requirements.

These pilot‑scale systems feature electronic overload protection, error code display, and plug‑in connectors for easy exchange of dispersing elements, including optional stainless steel tools for operation under vacuum or pressure conditions. Designed for industrial‑oriented environments, the T 65 requires a three‑phase power supply, with safety accessories such as the SI 400 safety switch available to enhance operator protection. This combination of power, control, and flexibility makes pilot scale dispersers an essential tool for scale‑up, process development, and product optimization.

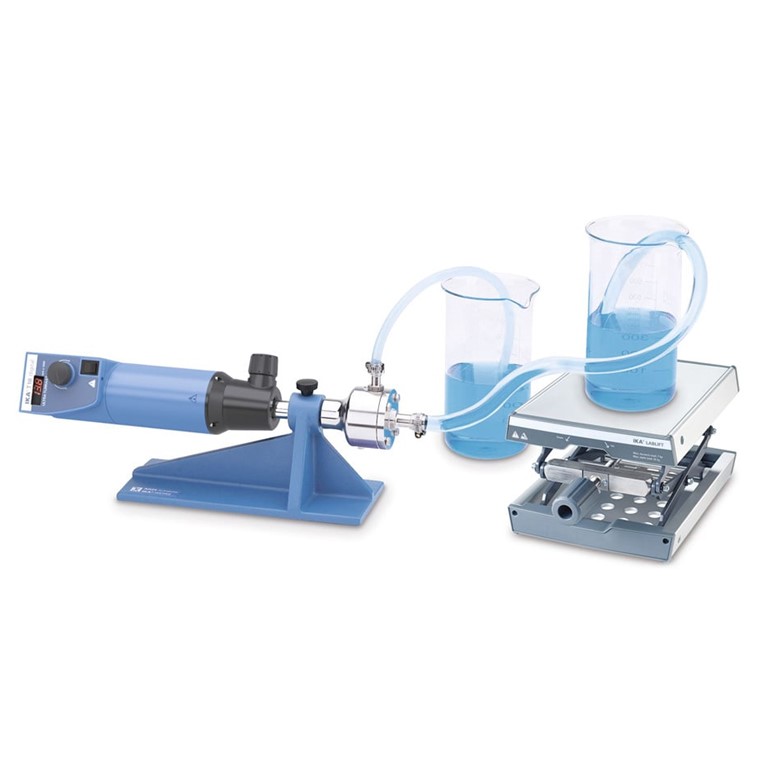

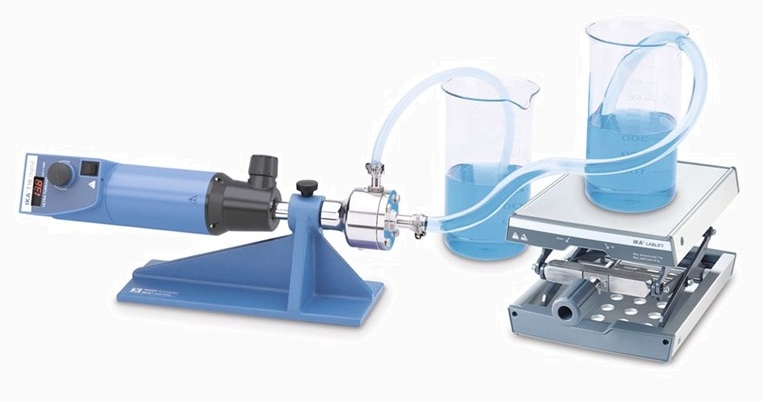

Inline Dispersers

Inline Dispersers from IKA offer precise flow-through processing for laboratory applications, combining compact, modular design with sterilizable, autoclave-compatible components. The UTL 25 digital Inline ULTRA-TURRAX® enables air-free, sterile suspension, emulsifying, and deagglomeration with a large delivery capacity of 4.4 – 11.6 L/min, suitable for vacuum or pressurized operation up to 6 bar. Its table-top or stand-supported setup requires minimal space, and the easy disassembly allows simple cleaning and maintenance. The system can integrate a pump for viscous fluids, while features like the DK 25.11 flow chamber prevent air induction during batch operation, ensuring reproducible, contamination-free results.
