Φασματογράφος Kymera 328i
O Kymera 328i είναι ένας modular φασματογράφος με εστιακή απόσταση 328 mm και διάφραγμα F/6.8, που προσφέρει υψηλή φασματική ανάλυση και ευελιξία για εφαρμογές φωταύγειας και Raman.

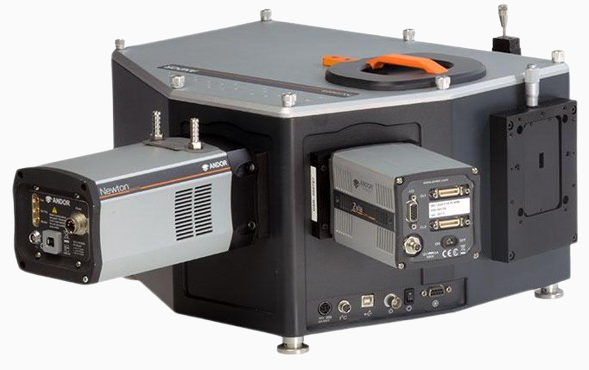

Kymera 328i Spectrograph
Intelligent and multi-modal spectroscopy platform for Physical and Life science
This highly modular spectrograph features patented Adaptive Focus, quadruple on-axis grating turret and TruRes™ technology, delivering superb spectral resolution performance. The unmatched configurability and highly intuitive user interface make it the perfect platform for a wide range of routine and more advanced spectroscopy experiments.
The intelligent, motorised Adaptive Focus of the Kymera allows automated access to the best optical performance for any grating, camera or wavelength range configuration. The TruRes™ option delivers unmatched spectral resolution for a third-meter focal length spectrograph, with performance enhancements exceeding 30%, extracting the very best performance from the Kymera without the need for a grating change or post-processing spectra mathematical alterations. Greater definition of dense Raman or plasma optical signatures can be achieved without compromise on bandpass, from UV to SWIR, at the touch of a button.
Features
➡️ 328 mm focal length, F/4.1 aperture – Ideal combination for a wide range of applications, from luminescence/photoluminescence spectroscopy to high-resolution Raman spectroscopy or plasma studies
➡️ Adaptive Focus (patented) – Intelligent and user-friendly interface for uncompromised spectral resolution performance
➡️ TruRes™ – Intuitive, rapid, and user-controlled option for >30% true spectral resolution enhancement at the touch of a button. No need for grating or turret change
➡️ Quad-grating turret with RFID technology – Seamless field-upgradability, precise indexing, automatic grating recognition, minimum user interaction, maximum resolution and band-pass flexibility
➡️ Astigmatism-corrected optical design – Toroidal optics for multi-track fiber detection and excellent image relay from microscope
➡️ Robust on-axis wavelength drive – High accuracy direct-drive, superb wavelength repeatability: down to 4 pm (single-grating), 10 pm (grating-to-grating)

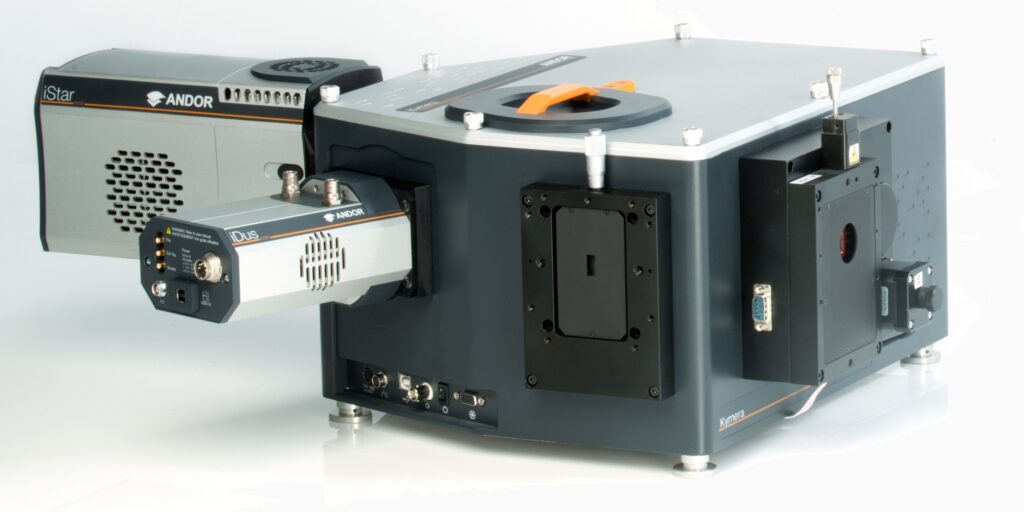

➡️ Dual detector outputs – Extended wavelength coverage when using UV-NIR CCD, EMCCD, ICCD and InGaAs cameras. Slit option for monochromator operation
➡️ Dual input ports – Greater setup flexibility for complex, multi-modal optical setups
➡️ USB interface – Plug-and-play connectivity, ideal for laptop operation with Andor USB cameras
➡️ Seamless connection to microscopes – Adjustable height, direct or cage system interfaces, 15 mm wide-aperture slit for extended sample relay and spectral analysis
➡️ Protected silver-coated optics options – Optimized for NIR/SWIR detection with Andor InGaAs cameras
➡️ Pre-aligned, pre-calibrated instrument – Out-of-the-box operation with individually characterized systems
➡️ High repetition rate shutter – 10 Hz continuous, 40 Hz burst mode for ultrafast acquisition
➡️ µ-Manager software integration – Single-platform control of cameras, spectrographs, microscopes, and accessories with user-friendly interface
➡️ Monochromator capabilities – High optical resolution and single-point detector compatibility (up to 12 µm, via LabVIEW SDK)
