Consul 22 & Consul 22 R – High capacity
The Consul 22 & 22 R are high-capacity, compact, versatile centrifuges with a TFT color touch screen, data export, and full process control. The R model adds refrigeration, keeping temperatures below 4°C at maximum speed.

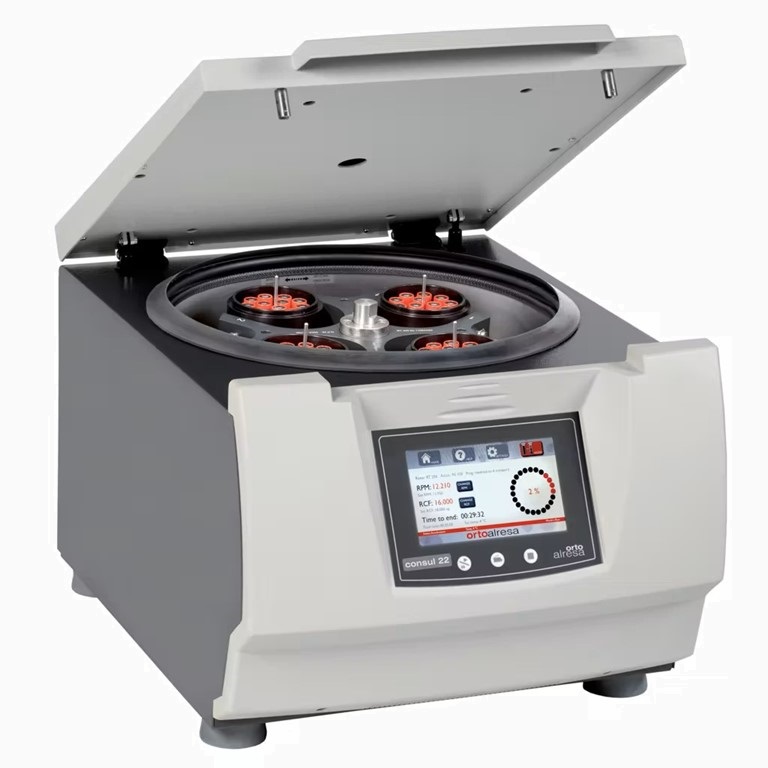

Consul 22 & Consul 22R
High Capacity
The Consul 22 is a high-capacity, compact, and versatile centrifuge designed for demanding laboratory applications. Its TFT color touch screen provides intuitive control over all operating parameters, while enabling data export for analysis and programming of future runs. The centrifuge supports a wide range of rotors, including swing-out rotors with 400 ml per bucket, rotors for 80 mm high microplates, and angle-fixed rotors for high-speed and microtube applications, along with a broad selection of adapters, making it suitable for virtually any sample type.
With its automation and programmable cycles, the Consul 22 helps optimize laboratory workflow and ensures traceability of all processes. For applications requiring temperature-sensitive samples, the Consul 22 R version adds refrigeration, maintaining the chamber below 4°C even at maximum speed, combining the same versatility and advanced control in a cooled environment.
TFT color touch screen, visible from more than 3 m.:
- Shows RPM and RCF, time, acceleration/deceleration values (PCBS) and unbalancing location system (ULS).
- Speed programming in 10 RPM/10 xg steps.
- Real RCF values on screen based on accessories configuration.
- Count up/down from “0” or at “set RPM/RCF” for test reproducibility.
- Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.
- Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
- PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
- ULS: Unbalance location system indicating on the screen the number of the bucket which produces the unbalance switch off.
- Start delay: To program the time at which the cycle is to begin.
- Linked program: Permits the linking of up to 8 consecutive programmes without the need of user intervention.
- 100 programmable memories, with protection under password.
- Several acoustic and visual messages showing the user the situation of the device.
Easy to use
- Microprocessor controlled. PC connection.
- Induction motor maintenance free (brushless).
- Rotors and adapters list in memory.
- Noise level: below 60 dB.
- Start, stop, open lid and short spin with adjustable speed buttons.
- Option of free/locked adjustment of RPM/ RCF along the run.
- Automatic lid opening, programmable.
- Low heigh for easy access
- Last values remain in memory.
- Automatic rotor recognition. Over-speed protection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking.
- Ergonomic design that allows close the lid effortless
- Unbalance detection and switch off.
- Protection safety ring between the centrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel (easy cleaning).
- Rotors can be removed with the lid closed. Hermetic lids.
- Rotors and adapters autoclavable, easy to install by the user.
- Forced ventilation to reduce temperature increasing.
- Automatic disconnection for energy saving up to 8 h., with deactivation option.
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Standards: EN 61010-1, EN 61010-2-101, EN 61010-2-020, EN 61326-2-6, EN 61326-1.
| Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
|---|---|---|---|---|---|
| CE 226 | 490x600x400 | 59 | 220-230 | 50-60 | 600 |
| CE 227 | 490x600x400 | 59 | 110-120 | 50-60 | 600 |

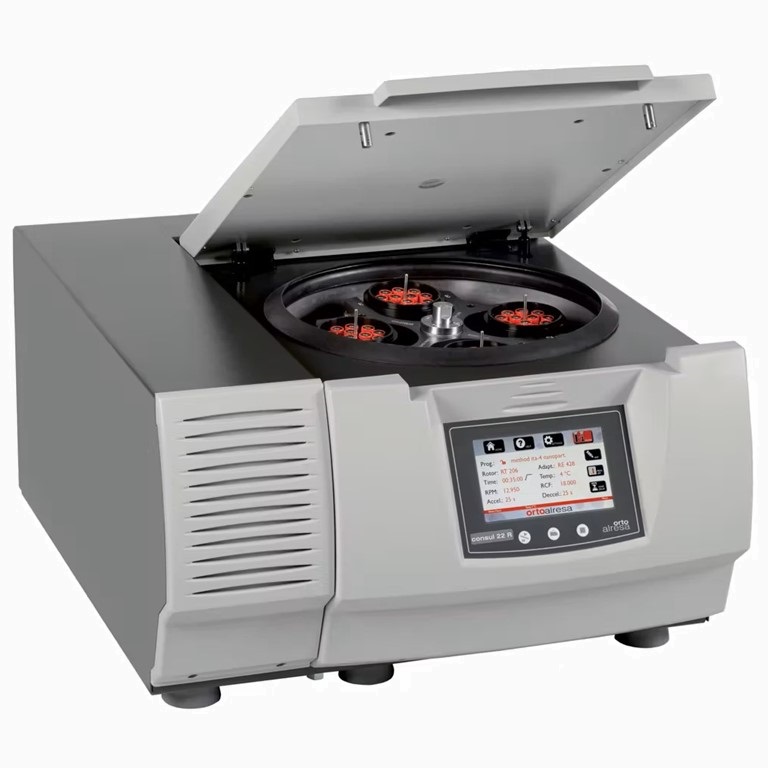

Consul 22 R
High Capacity
The Consul 22 R is a high-capacity, refrigerated centrifuge designed for laboratories handling temperature-sensitive samples. Combining the same versatility as the Consul 22, it features a TFT color touch screen, programmable cycles, and data export capabilities, allowing complete control over every parameter and ensuring traceability throughout the process. Its broad range of rotors includes swing-out rotors with 400 ml per bucket, microplate rotors, angle-fixed high-speed rotors, and a wide variety of adapters, making it suitable for virtually any sample type.
The refrigeration system maintains the chamber at temperatures from –20°C to +40°C, guaranteeing 4°C even at maximum speed, while supporting high-speed operation and diverse rotor configurations. With its automation, advanced control features, and stable cooling, the Consul 22 R ensures reliable, reproducible results for demanding molecular biology, biochemistry, and clinical applications, providing an efficient and versatile solution for laboratories requiring precision and sample integrity.
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Regulation n°: (EC) 1005/2009, (EU) 517/2014.
Standards: EN 61010-1, EN 61010-2-101,EN 61010-2-020, EN 61326-2-6, EN 61326-1.
| Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
|---|---|---|---|---|---|
| CE 232 | 670x730x400 | 98 | 220-230 | 50 | 800 |
| CE 233 | 670x730x400 | 98 | 110-120 | 50-60 | 800 |
