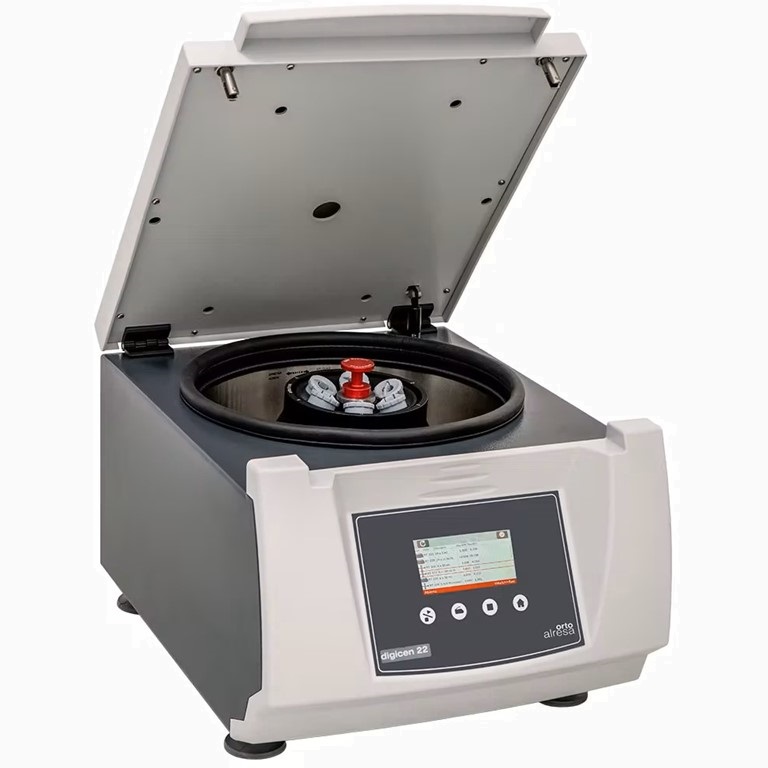

Digicen 22 Universal
The Digicen 22 is a universal centrifuge with a wide rotor range for tubes up to 100 ml, microplates, and microtubes. Equipped with the REI system and SmartConnect app, it offers easy setup and complete remote control via Wi-Fi.
Digicen 22
Universal
The Digicen 22 is a universal centrifuge designed to provide maximum versatility and control in laboratory applications. It supports a wide range of rotors, making it compatible with microplates, cryotubes, microtubes, and tubes up to 100 ml. Its configuration options include 28 × 15 ml tubes in a swing-out rotor, 32 × 15 ml conical tubes in a fixed-angle rotor, and high-speed rotors for 85 ml, 80 ml, 50 ml, 30 ml, and 10 ml tubes, covering the full spectrum of centrifugation needs.
All accessories feature the innovative REI (Rotor Easy to Install) system, allowing tool-free installation and quick removal with a simple movement, ensuring efficiency, safety, and ease of use.
The Digicen 22 also integrates seamlessly with the Ortoalresa SmartConnect application, enabling remote monitoring, programming, and control from any device — PC, tablet, or smartphone. By connecting to your lab’s Wi-Fi network, the centrifuge becomes part of a smart, connected laboratory, offering precision, flexibility, and full operational control.
TFT color touch screen:
• Shows RPM and RCF, time and acceleration/deceleration values (PCBS)
• Speed programming in 10 RPM/10 xg steps.
• Real RCF values on screen based on accessories configuration.
• Count up/down from “0” or at “set RPM/RCF” for reproducible tests.
• Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
• PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
• Start delay: To program the time at which the cycle is to begin.
• Linked program: Permits the linking of up to 8 consecutive programmes without the need of user intervention.
• 100 programmable memories, with protection under password.
• Several acoustic and visual messages showing the situation of the device to the user.
Easy to use
• Microprocessor controlled. Connectivity.
• Induction motor maintenance free (brushless).
• Rotors and adapters list in memory.
• Noise level: below 60 dB.
• Start, stop, open lid and short spin with adjustable speed buttons.
• Possibility to block or modify the speed during the cycle.
• Automatic lid opening, programmable.
• Last values remain in memory.
• Automatic rotor recognition. Over-speed protection.
Safety
• Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking.
• Unbalance detection and switch off.
• Protection safety ring between the centrifugation chamber and the housing.
• Chamber of centrifugation in stainless steel (easy cleaning).
• Rotors can be removed with the lid closed. Hermetic lids.
• Rotors and adapters autoclavable, easy to install without tools (REI System)
• Forced ventilation to reduce temperature increasing.
• Automatic disconnection for energy saving up to 8 h., with deactivation option.
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Standards: EN 61010-1, EN 61010-2-101, EN 61010-2-020, EN 61326-2-6, EN 61326-1.
| Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
|---|---|---|---|---|---|
| CE 257 | 410x520x320 | 35 | 220-230 | 50-60 | 400 |
| CE 258 | 410x520x320 | 35 | 110-120 | 50-60 | 400 |
