Digtor 22 & Digtor 22 R – High Capacity
The Digtor 22 and 22 R are high-capacity benchtop centrifuges with multiple rotors and adaptors for tubes from 750 ml to 0.2 ml. Both feature a TFT touch screen, programmable cycles, and data export, while the 22 R adds refrigeration for temperature-sensitive samples.
Digtor 22 & Digtor 22R
High Capacity

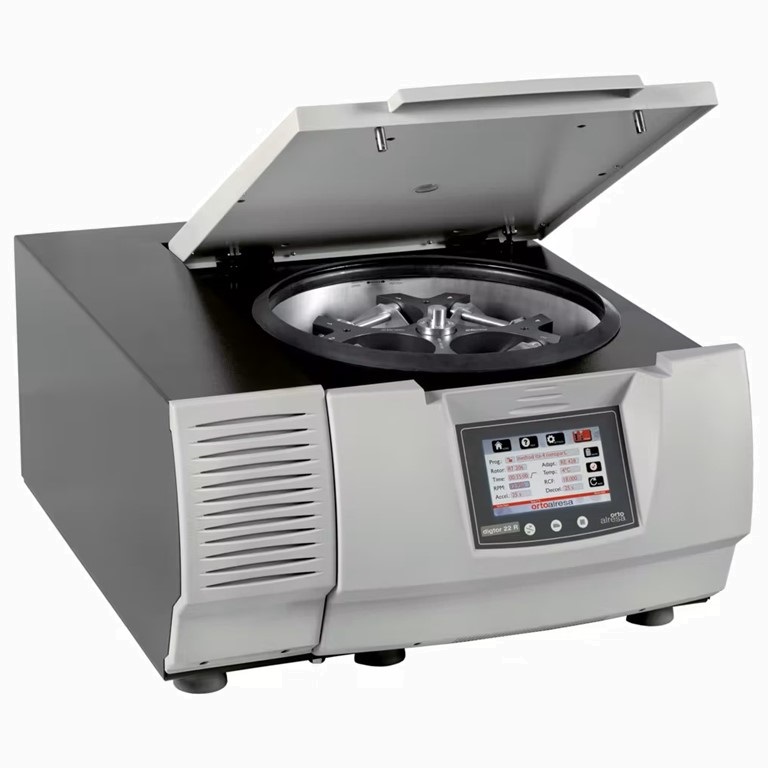

The Digtor 22 is a high-capacity benchtop centrifuge designed for laboratories requiring versatility, reliability, and superior performance. It accommodates tubes from 750 ml to 0.2 ml across more than 12 rotors, including both angle fixed and swing-out types, and over 50 sets of adaptors, offering unmatched flexibility for routine laboratory work.
Equipped with a TFT color touch screen, the centrifuge provides intuitive control of all operational parameters, programmable cycles, and data export for traceability and analysis. Its high-speed capability, combined with automation of cycles and work modes, optimizes lab workflow, ensures reproducibility, and minimizes user intervention.
The Digtor 22 integrates advanced safety and ergonomic features, including easy rotor loading, unbalance detection, and low noise operation, making it suitable for intensive laboratory use. For applications requiring temperature-sensitive samples, the refrigerated Digtor 22 R option provides chamber cooling below 4°C while maintaining all the performance and versatility of the standard model.
TFT color touch screen, visible from more than 3 m.:
- Shows RPM and RCF, time, acceleration/deceleration values (PCBS) and unbalancing location system (ULS).
- Speed programming in 10 RPM/10 xg steps.
- Real RCF values on screen based on accessories configuration.
- Count up/down from “0” or at “set RPM/RCF” for test reproducibility.
- Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.
- Timer from 1 sec. to 99 hours programmable in 1 sec. steps and hold position.
- PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
- ULS: Unbalance location system indicating on the screen the number of the bucket which produces the unbalance switch off.
- Start delay: To program the time at which the cycle is to begin.
- Linked program: Permits the linking of up to 8 consecutive programmes without the need of user intervention.
- 100 programmable memories, with protection under password.
- Several acoustic and visual messages showing the user the situation of the device.
Easy to use
- Microprocessor controlled. PC connection.
- Induction motor maintenance free (brushless).
- Rotors and adapters list in memory.
- Noise level: below 60 dB.
- Start, stop, open lid and short spin with adjustable speed buttons.
- Option of free/locked adjustment of RPM/ RCF along the run.
- Automatic lid opening, programmable.
- Low heigh for easy access
- Last values remain in memory.
- Automatic rotor recognition. Over-speed protection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking.
- Ergonomic design that allows close the lid effortless
- Unbalance detection and switch off.
- Protection safety ring between the centrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel (easy cleaning).
- Rotors can be removed with the lid closed. Hermetic lids.
- Rotors and adapters autoclavable, easy to install by the user.
- Forced ventilation to reduce temperature increasing.
- Automatic disconnection for energy saving up to 8 h., with deactivation option.
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Standards: EN 61010-1, EN 61010-2-101, EN 61010-2-020, EN 61326-2-6, EN 61326-1.
| Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
|---|---|---|---|---|---|
| CE 228 | 530x640x400 | 71 | 220-230 | 50-60 | 700 |
| CE 229 | 530x640x400 | 71 | 110-120 | 50-60 | 700 |
Digtor 22 R
High Capacity
The Digtor 22 R is a refrigerated benchtop centrifuge designed for laboratories handling temperature-sensitive samples. It offers the same high capacity, versatility, and advanced features as the Digtor 22, including multiple rotors and adaptors for a wide range of tubes, intuitive TFT touch screen control, programmable cycles, and data export, ensuring full automation and traceability.
Its refrigeration system maintains the chamber below 4°C even at maximum speed, preserving sample integrity during high-speed operation. The combination of cooling, ergonomic design, and advanced safety features makes the Digtor 22 R ideal for applications in molecular biology, biochemistry, clinical labs, and research, providing reliable, reproducible, and high-performance results.
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 2017/746/EU.
Regulation n°: (EC) 1005/2009, (EU) 517/2014.
Standards: EN 61010-1, EN 61010-2-101,EN 61010-2-020, EN 61326-2-6, EN 61326-1.
| Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
|---|---|---|---|---|---|
| CE 234 | 720x780x400 | 113 | 220-230 | 50 | 1000 |
| CE 235 | 720x780x400 | 113 | 110-120 | 60 | 1000 |
