The Faraday Cage from Princeton Applied Research is designed to shield sensitive electrochemical measurements from environmental electrical noise. By enclosing the electrochemical cell and its connections within a conductive enclosure, it minimizes interference from external electric fields, ensuring more accurate and reliable data, especially in low-current or high-frequency experiments.

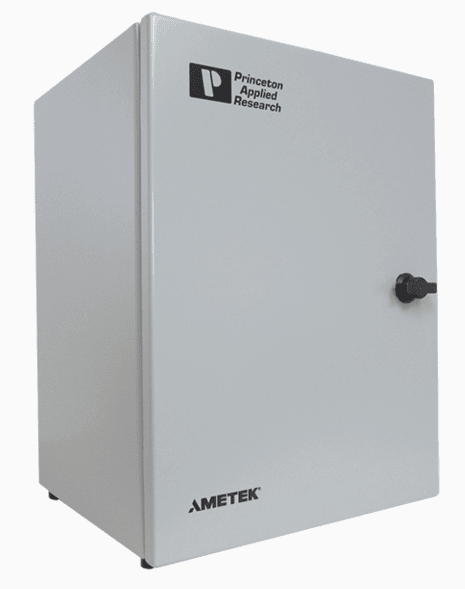

Faraday Cage
Description

🟦 Faraday Cage
Environmental noise from power lines, surrounding equipment and instruments, lighting, HVAC systems, etc., are present in all laboratory environments. Whether or not this noise has a significant impact on the data being generated depends on the sensitivity of the experiment. In electrochemical analysis, low current and/or high frequency experiments are especially susceptible to the interference of environmental noise. There are a variety of noise mitigation techniques that can be implemented before, during, and after data is acquired.

One of the most effective methods is the use of a Faraday Cage. A Faraday Cage is simply a metallic conductor in the form of a metal sheet or fine wire mesh that surrounds the electrochemical cell and the connections to the cell cable, acting to shield anything housed in the cage from the effects of external electric fields. All electrochemical experiments can benefit from the noise-reducing properties of a Faraday Cage. Princeton Applied Research offers two different options: the standard Faraday Cage is large enough to meet the needs of most researchers and can accommodate the VersaSTAT LC, while an oversized Faraday Cage designed for use with the VersaSCAN is also available.
➡️ Designed to reduce noise pickup in electrochemical measurements
➡️ Standard Faraday Cage is large enough to accommodate our electrochemical cells and VersaSTAT LC

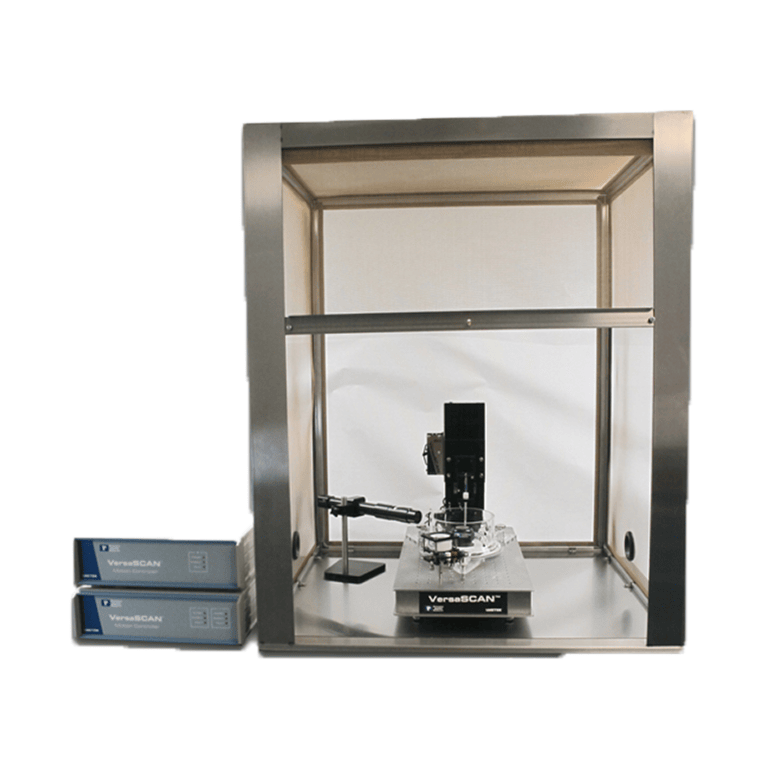

➡️ An oversized Faraday Cage designed for use with the VersaSCAN is also available
Specifications | K0269B |
Construction | Heavy gauge steel enclosure |
Door | Hinged door with cam latch |
Dimensions (L x W x H) | 10.75 x 12.00 x 16.00 in (27 x 30 x 41 cm) |
