High Speed Centrifuges
Gyrozen‘s High Speed Centrifuges combine precision, reliability, and innovative design for maximum laboratory performance. Models 1236R, 1736R, and 2236R offer high speeds, temperature control, and safe operation for all centrifugation needs.
High Speed Centrifuges
Gyrozen High Speed Centrifuges are a fundamental tool in every laboratory, combining speed, precision, and reliability. Designed for the fast and efficient separation of samples, they support both routine procedures and more demanding applications in biochemistry, molecular biology, and other fields. With fast sample cooling to 4℃, stable operation, and lid drop protection, these instruments make laboratory work safer and more convenient.
The range includes the 1236R, 1736R, and 2236R models, each designed to meet different needs. The 1236R is ideal for routine work with medium-volume samples, the 1736R offers higher speeds and a low working height for easy loading, while the 2236R combines maximum speed, large capacity, and advanced management features for multi-user environments. All centrifuges provide flexible rotor and adapter options, making centrifugation efficient and adaptable for every laboratory requirement.
1236R
The 1236R is a multi-purpose high speed centrifuge designed for large-volume laboratories. It offers a maximum speed of 12,000 rpm, fast sample cooling to 4℃, flexible use of rotors and adapters, and easy operation thanks to the numeric interface and motorized lid mechanics.
Features
– Max. speed of 12,000 rpm with high capacity and a large assortment of rotors
– Fast cooling function to 4℃ in 5 minutes for fast startup of cooled samples
– The compressor-off function when the lid is open minimizes unnecessary cooling and frosting.
– Intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
– Selectable time mode of “at set SPEED” for counting running time only when the set speed is reached
– A separate “PULSE” key for a quick spin – Parameters can be changed during operation.
– Key lock function helps the set parameters secured during operation.
– With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
– Lid drop protection design allows easy and safe loading or unloading of samples.
– A large assortment of rotors, buckets, and adaptors support diverse applications with one instrument.

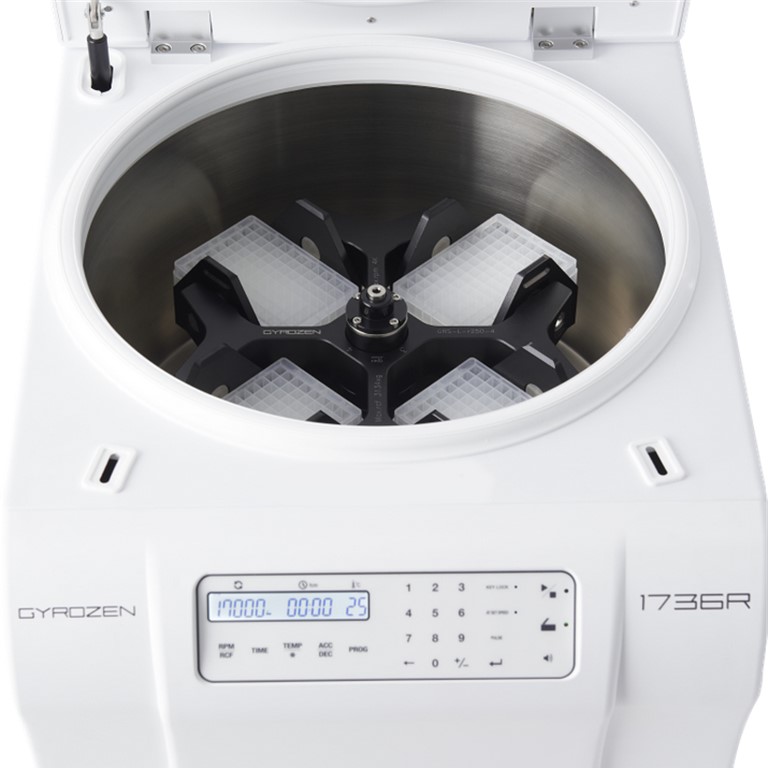

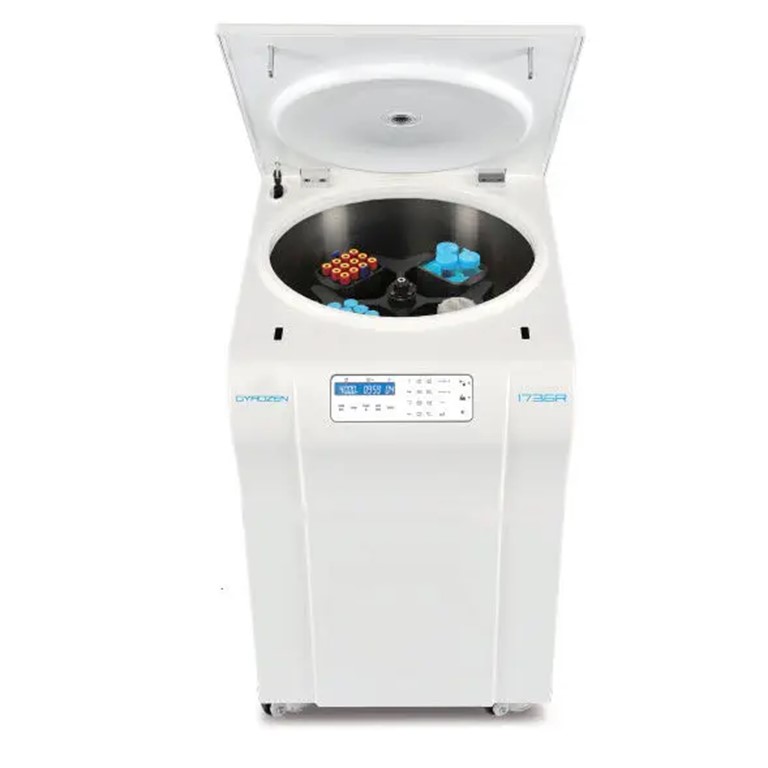

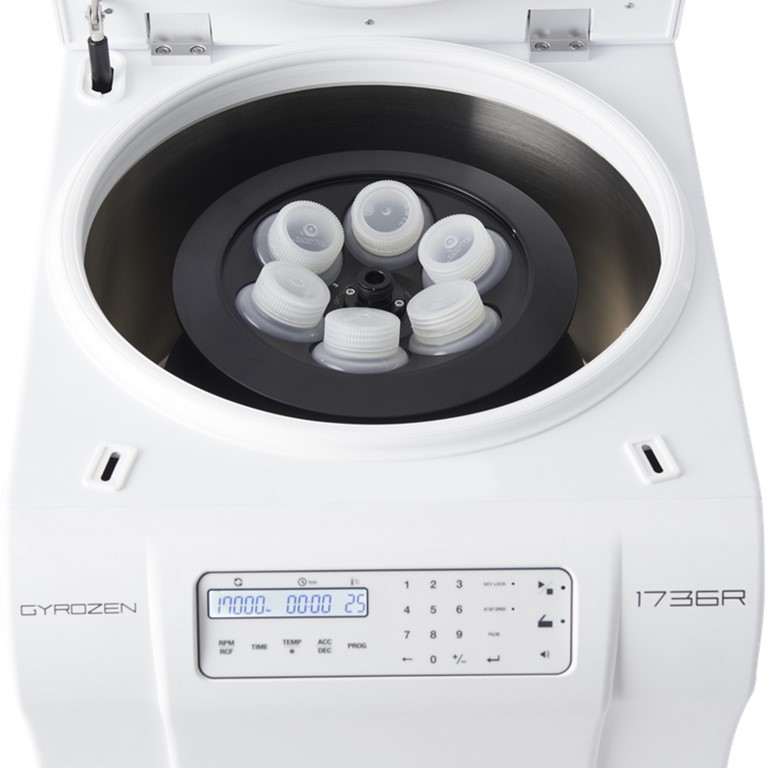

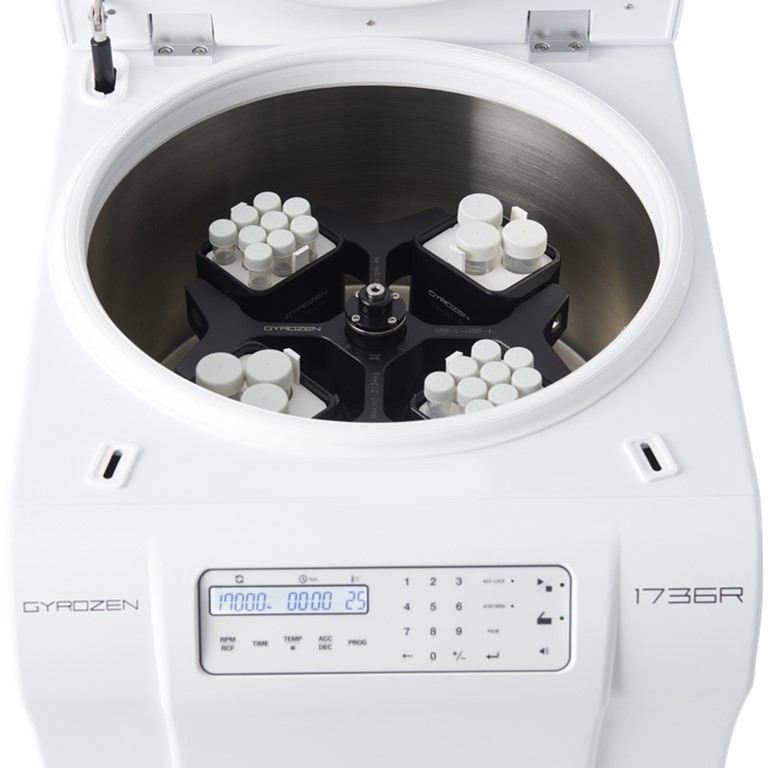

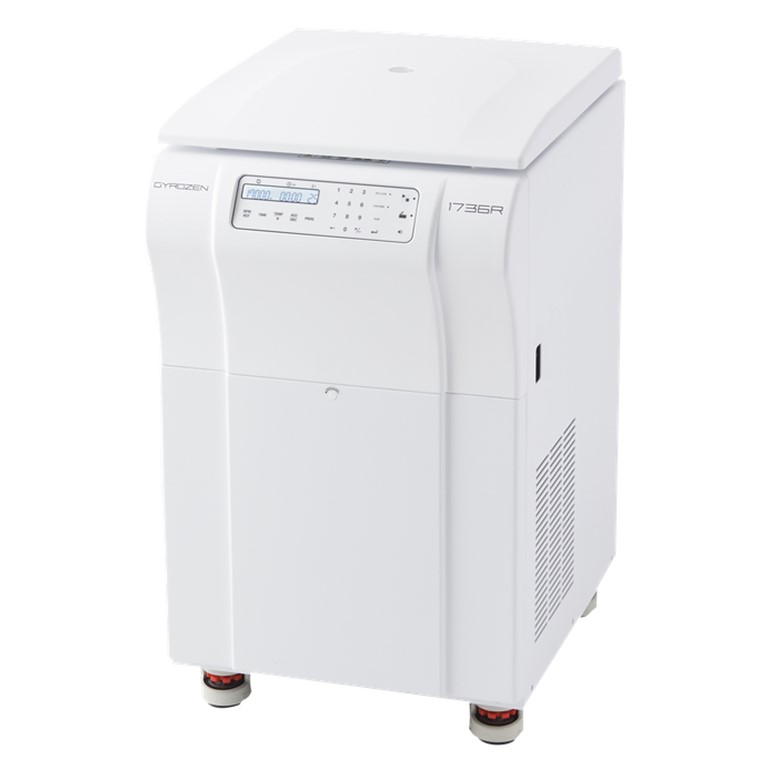

1736R
The 1736R is a high speed centrifuge, ideal for laboratories that require high performance and easy sample access. With a maximum speed of 17,000 rpm and low working height, it provides fast sample cooling to 4℃, lid protection, and easy operation thanks to the motorized lid mechanics and the intuitive control interface.
Features
– High RPM up to 17,000 rpm (32,310 x g)
– The short working height of 84 cm (33 inches) ensures easy loading and unloading.
– With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
– Lid drop protection design allows easiness and safety when loading or unloading samples.
– Fast system temperature cooling function to 4℃ for fast startup of cooled samples
– The compressor-off function when the lid is open minimizes unnecessary cooling and frosting.
– Intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
– Selectable time mode of “at set SPEED” for counting running time only when the set speed is reached
– A separate “PULSE” key for quick spin
– Parameters can be changed during operation.
– Key lock function helps the set parameters secured during operation.

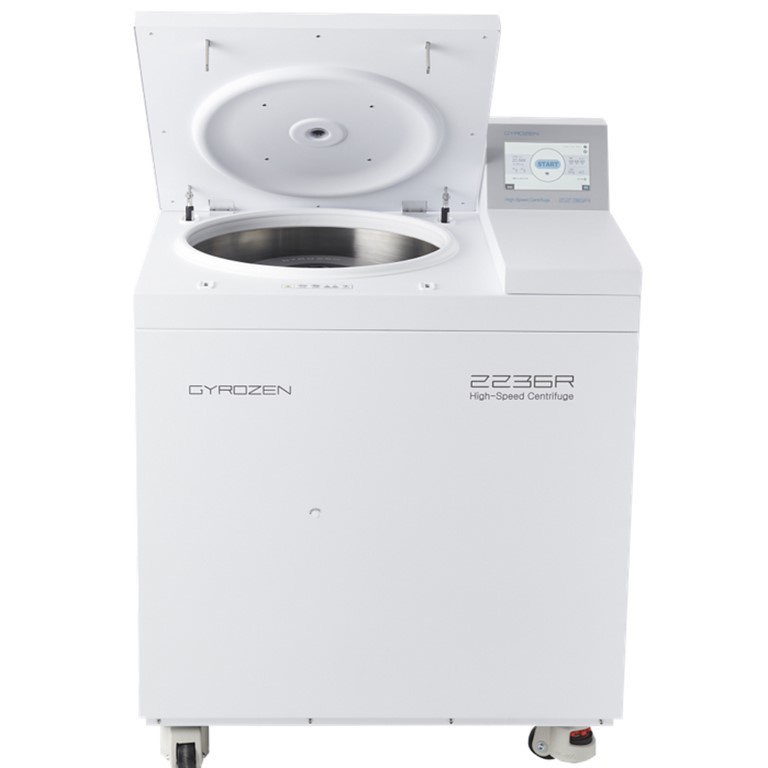

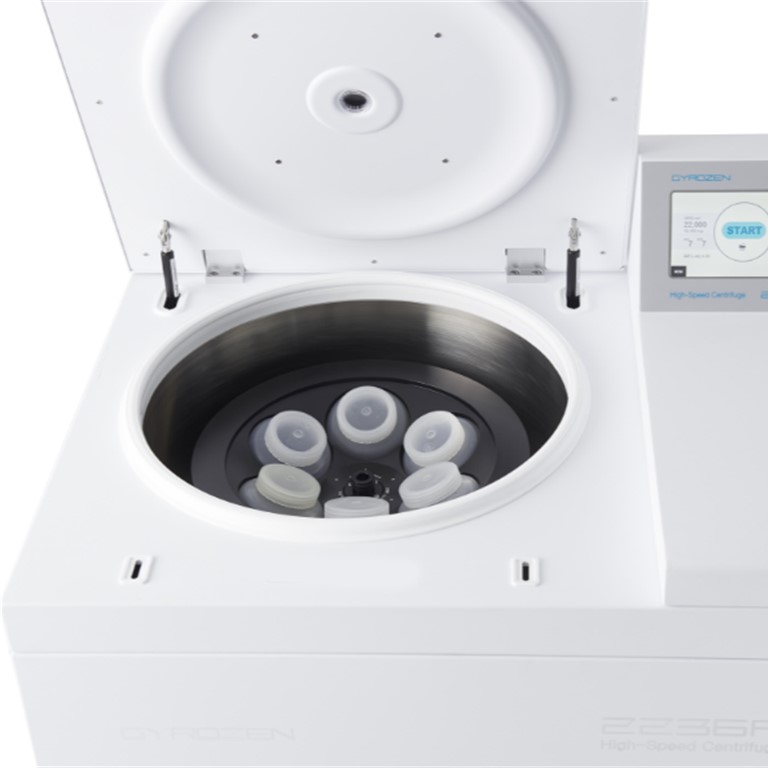

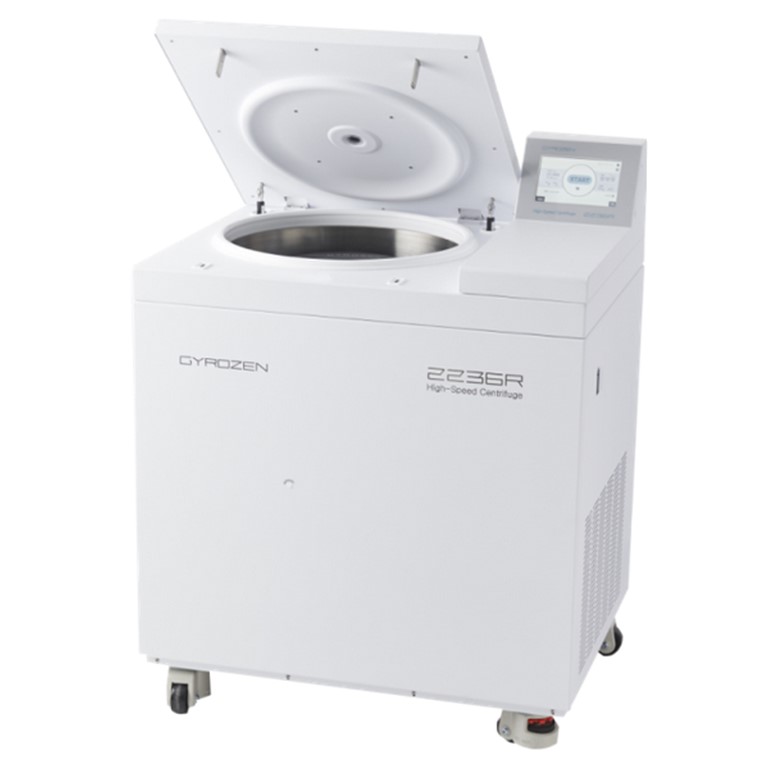

2236R
The 2236R is a high speed centrifuge with large capacity, designed for multi-user environments and high-volume applications. It delivers a maximum speed of 22,000 rpm, fast sample cooling to 4℃, lid protection, and easy operation thanks to the motorized lid mechanics and the intuitive touch-screen interface. Protocol management and user-specific parameter locking make it ideal for multi-user laboratories.
Features
– Ideal for large-volume harvesting in cellular and molecular biology works, clinical preparations, industrial applications, etc.
– High Maximum RPM of 22,000 rpm (54,111 xg)
– Instrument lock/unlock by password control and protocol management by user ID is ideal for core lab facility or multi-user environment
– A large assortment of rotors, buckets, and adaptors support diverse applications doable with one instrument.
– Fast system cooling function to 4℃ for a fast startup of cooled samples
– The compressor-off function when the lid is open minimizes unnecessary cooling and frosting.
– With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
– Lid drop protection design allows easiness and safety when loading or unloading samples.
– Intuitive control interface with numeric input buttons and graphic pictograms for easy setting and editing of running conditions.
– Windows CE-based 7″ LCD Touch Screen with simultaneous display of all the parameters of set and actual values.
– Selectable time mode of “at set SPEED” for counting running time only when the set speed is reached
– Up to 5 protocols per run can be combined for the convenient operation of complicated experiments.
– The parameters of TIME, TEMP, ACC, and DEC are allowed to be changed during operation.
