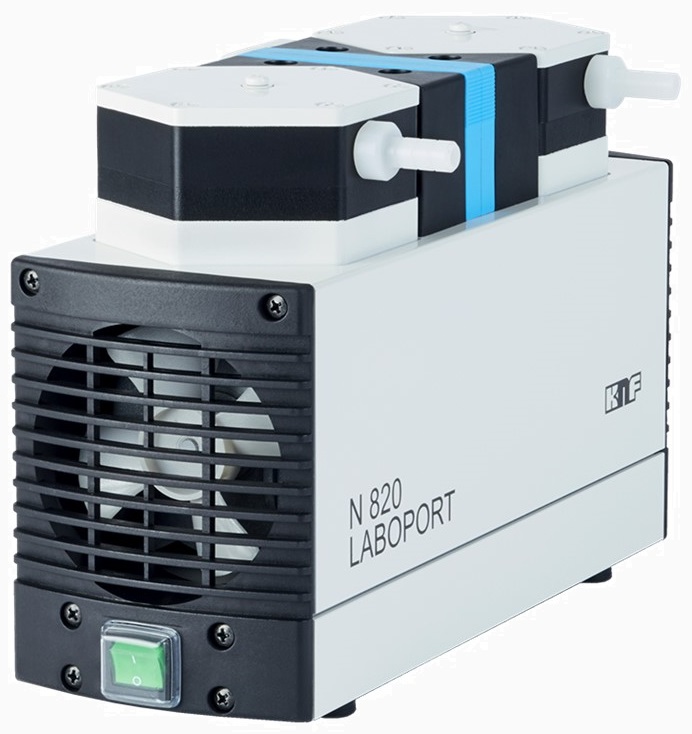

LABOPORT® N 820.3 FT.18 – Diaphragm Vacuum Pump
Chemically resistant, oil-free diaphragm vacuum pump designed for handling aggressive vapors in laboratory settings. It offers a maximum flow rate of 20 l/min and an ultimate vacuum of 8 mbar (abs.), ensuring efficient and reliable performance.
LABOPORT® N 820.3 FT.18
Diaphragm Vacuum Pump
Chemically resistant, oil-free diaphragm vacuum pump used for a wide range of laboratory applications. Especially suited for handling aggressive vapors, it features PTFE heads, PTFE-coated diaphragms and FFPM valves.
➡️ Flow Rate (max.): 20 l/min
➡️ Ultimate Vacuum (max.): 8 mbar (abs.)
➡️ Clean, 100% oil-free operation
➡️ Chemically-resistant PTFE/FFPM flowpath
➡️ Ideal for extremely aggressive/corrosive gases and vapors
➡️ Compact, quiet and reliable
Specifications
| Flow Rate (max.) | 20 l/min |
| Ultimate Vacuum (max.) | 8 mbar (abs.) |
| Pressure (max.) | 1 bar (rel.) |
| Weight | 9.3 kg |
| Permissible Media Temperature | 5–40 °C |
| Permissible Ambient Temperature | 5–40 °C |
| Valve Material Options | FFPM |
| Diaphragm Material Options | PTFE coated |
| Pump Head Material Options | PTFE |
