Mechelle 5000 Spectrograph
High-resolution, broadband Echelle spectrograph, ideal for simultaneous multi-line spectra capture across the 200 nm – 975 nm range. Designed for plasma diagnostics, LIBS, and elemental analysis.
Mechelle 5000 Spectrograph
High-resolution, broadband Echelle spectrograph for simultaneous multi-line spectral acquisition

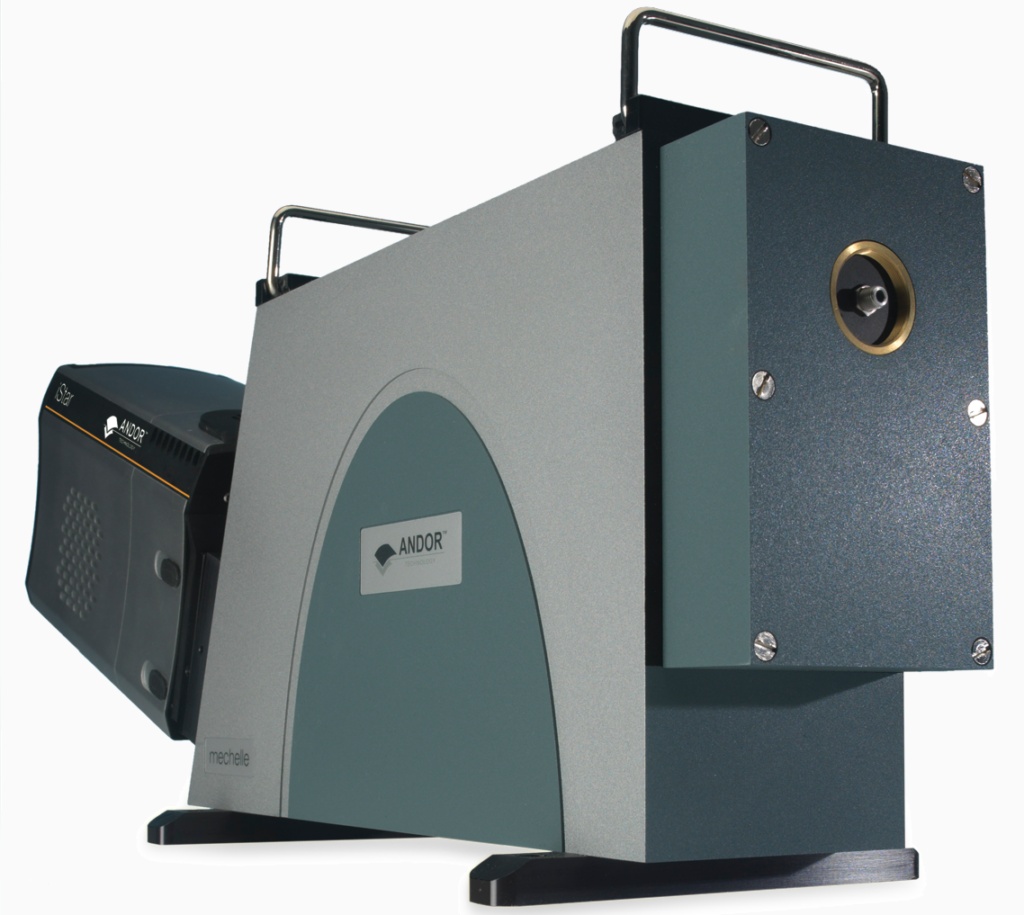

The Andor Mechelle ME5000 Echelle spectrograph is designed for simultaneous acquisition of a broad wavelength range from 200 to 975 nm in a single exposure. Its compact and robust build, combined with a patented optical design, ensures high-resolution, low cross-talk spectral capture. The system operates without any moving components, enhancing reliability and stability for demanding applications.
The Mechelle ME5000 comes in a pre-aligned detector/spectrometer format, ensuring quick integration into experimental setups. It features auto-temperature correction, N₂ purging capability, and offers maximum resolution across a wide spectral range — ideal for applications that require simultaneous multi-line detection with high accuracy.
Features
➡️ Compact and robust design with no moving components – Ideal for non-lab based applications
➡️ Patented optical design – Ensures maximum resolution and extremely low cross-talk
➡️ Auto-temperature correction – Compensates for refractive index variation of prisms due to temperature changes
➡️ N₂ purged – Enables maximum throughput in the UV region
➡️ Pre-aligned detector/spectrograph solution – Allows for fast, efficient setup
➡️ Low F/number – Enables highly efficient light collection
➡️ Wide range of accessories available – Includes fibre optics, slits, aiming laser, collimators and calibration lamps
➡️ Andor Solis software – Automatically extracts a fully calibrated spectrum from the echelle image and offers advanced data manipulation
➡️ Peak labelling with NIST table – Quick identification of known atomic species at the press of a button
