Quantum Efficiency Measurement Station

Quantum Efficiency Measurement Station: Automated, comprehensive tool for solar cells characterization, measuring quantum efficiency and key performance parameters.

Product SKU Quantum-Efficiency-Measurement-Station Category Brand:

Description

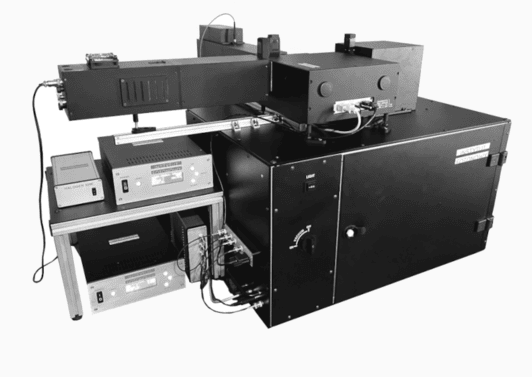

⬛ Quantum Efficiency Measurement Station

The Quantum Efficiency Measurement Station is a complete experimental setup for solar cells spectral response investigation. The sample is illuminated with a monochromatic beam produced by the Monochromator with two types of light sources at the entrance: Xenon Lamp and Halogen Lamp. Both lamps provide wavelengths range that covers UV, VIS, and IR light. Instrument with the BIAS Light extension enables to excite the sample with a normalized white AM1.5G light from an additional Xenon Lamp combined with the Air Mass Filter. The examined cell is placed on a motorized vacuum XY Table, with a manual Z shift.

Measurements are performed in a chamber that screens the setup from ambient light and external EM fields. The incident light intensity is monitored with a Dual Band Si/InGaAs Photodiode. All the system components are fully automated, controlled via software.

⬛ Quantities measured by the instrument:

  • I-V characteristics
  • Open Circuit Potential (OCP) under illumination
  • Spectral reflection coefficient (R)
  • Spectral transmission coefficient (T)

⬛ Characteristics:

  • External quantum efficiency (EQE or IPCE)
  • Internal quantum efficiency (IQE or APCE)
  • Short-circuit current density (Jsc)
  • Fill Factor

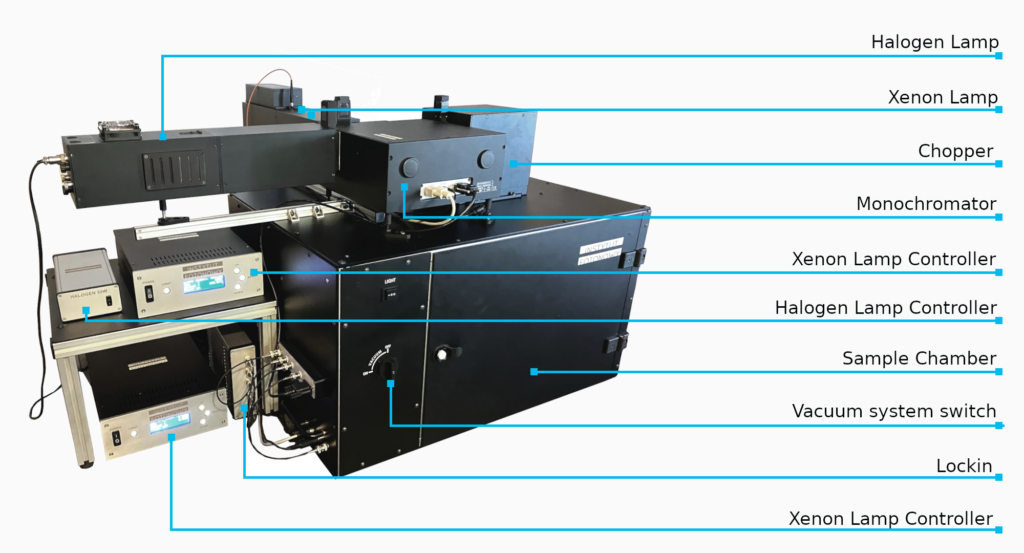

QE Measurement Station modules

⬛ The system consists of:

  • Sample Chamber
  • Motorized Multi-Axis Vacuum Table with a built-in photodiode
  • Integrating Sphere
  • Monochromator with two entrance slits for automatic switching between light sources
  • Xenon Lamp at the first entrance of the Monochromator
  • Halogen Lamp at the second entrance of the Monochromator
  • Lock-in for measured signals processing
  • Xenon Lamp + AM1.5G Filter (BIAS Light extension)

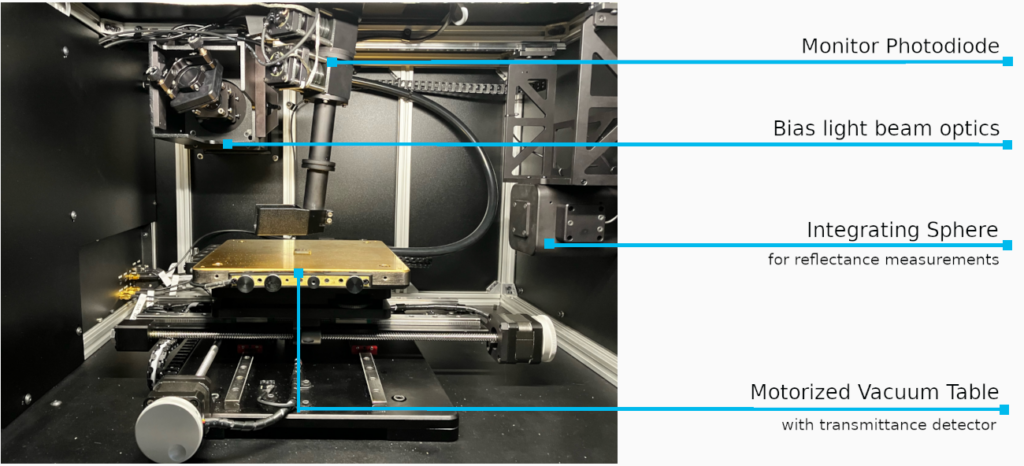

⬛ Sample Chamber interior

Photocurrent measurement / Reflected flux measurement / Built-in photodiode for Transmitted flux measurement

Specifications

*Instrument performance may be tailored to the certain requirements

⬛ General

  • Total wavelengths range: 200 ÷ 1650 nm
  • Adjustable white light beam intensity on the sample: 0.01 ÷ 0.1 W/cm²
  • Illumination homogeneity: 10%

⬛ Xenon Lamp

  • 150 W xenon burner
  • Water cooling system
  • Low EM emission igniter
  • Stabilization modes:
    electric current stabilization (distortions < 1%)
    electric power stabilization
    light intensity stabilization (unique solution to provide constant sample illumination during the experiment)
  • Maximum radiation intensity on the sample: 35 mW/cm²

⬛ Halogen Lamp

  • Electrical power of halogen bulb: 150 W
  • Reflector type: elliptic
  • Air cooling system

⬛ Monochromator

  • Three gratings on the turret, each optimized for different wavelengths range
  • Automated grating switching depending on the wavelength selection
  • Motorized output and input slits, controlled via software
  • Two input slits for different light sources, switched via software
  • Entrance and output slit opening range: 0 ÷ 5 mm
  • Motorized internal shutter, that provides full cut off of the light beam
  • Maximal spectral resolution: 0.1 nm (depends on the input and output slits width)
  • Chopper at the output

⬛ Filter Changer

  • Placed at the Sample Chamber entrance
  • Up to 6 filters
  • Two edge (long pass) filters provided by default: 400 nm and 600 nm

⬛ Detectors

Dual Band Si/InGaAs Photodiodes are used to monitor the incident light intensity, the flux transmitted through the sample, and the flux reflected by the sample

⬛ Lockin

  • Bias potential range: -5 V ÷ 5 V
  • Current ranges: 1 µA, 10 µA, 100 µA, 1 mA, 10 mA, 100 mA
  • Current resolution: from 1 pA to 100 nA (range dependent)
  • Maximum sampling rate: 1 kSample/s
  • Connection with PC: via USB 2.0
  • Two photodiodes inputs handled simultaneously (Reference Photodiode and Reflectance/Transmittance Photodiode)
  • DC and AC measurement mode
  • Input gain: x1, x2, x4, x8, x12
  • Integration time: 1 ms ÷ 10 s

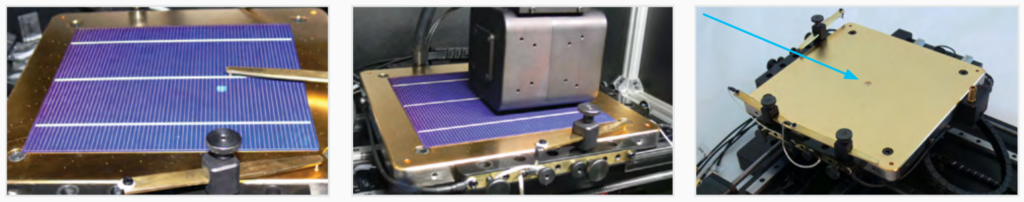

⬛ Motorized Multi-Axis Vacuum Table

  • Maximum sample dimensions: 20 x 20 cm
  • Contact electrodes placed manually at any point of the sample
  • Golden coating
  • Movement range for Z axis: 12 mm (manual)
  • Movement precision: 0.01 mm
  • Built-in detector for transmitted light detection
  • Adjustable contact pins for photocurrent measurements
  • Vacuum pump integrated to keep the sample in stable position
